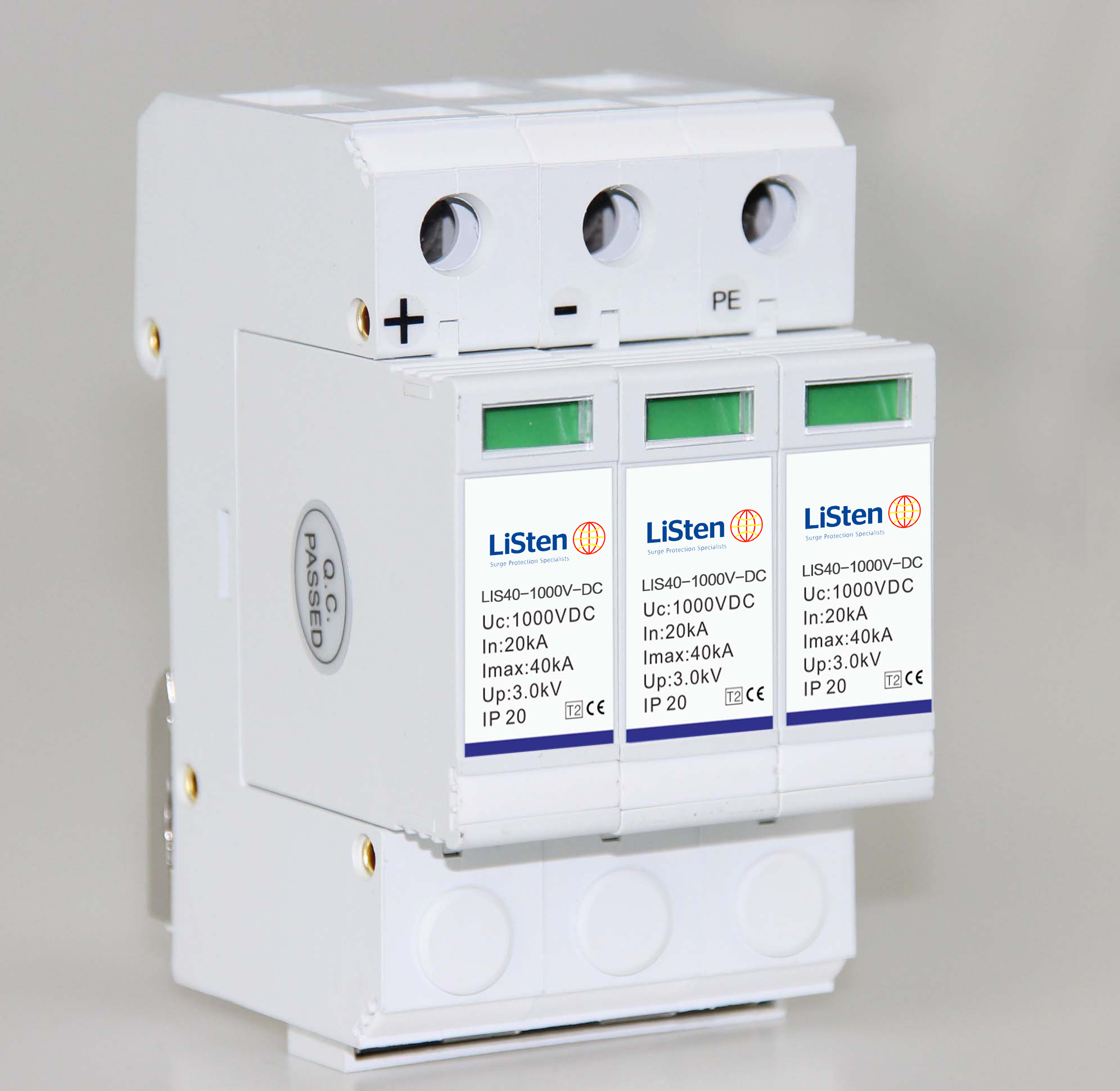

DC Surge Protective Device SPD for Photovoltaic PV solar Applications

Photovoltaic applications are found within the Solar Industry. It is important to protect Photovoltaic (PV) Panels from surge to allow maximum ROI to the investors. By far, the biggest culprit of electrical surges rendering damage to solar panels is direct and indirect lightning strikes to the system.

Visual Indication: Green=OK, Red=Replace
Integrated keying prevents plug/base voltage mis-mating errors at the time of replacement.
Remote alarm contact to make status monitoring easy.
Quick thermal response for self-protection.
Voltage protection level (Up): <4kV
T1+T2, Class B+C, Class I+II, Iimp(10/350μs): 7kA/12,5kA
T2, Class C, Class II, In(8/20μs): 20kA, Imax(8/20μs): 40kA
Ucpv: 600Vdc/1000Vdc/1500Vdc
IP20 Degree of Ingress Protection
